2.2. System requirements

Computing requirements needed to run Trisul.

2.2.1 In Packet Capture mode

Single machine in the default Packet Capture Mode with typical small enterprise load of 50-200Mbps. [ See Setup Trisul for Packet Capture Mode ]

Hardware System Requirements
Bare Metal 4 Core 3Ghz Intel i3/i5/i7/or Xeon class, 8GB RAM, 2×1Gb LAN. SATA or 10K SAS for PCAP storage
Virtual Machine 8 vCPU Cores, 12GB RAM, 2×1Gb LAN. VM Port Group mirror feature enabled to receieve the raw packets. VM is not recommended in Packet Capture mode when total load is greater than 500Mbps. Consider bare metal deployment.

2.2.2 In Netflow mode

Single machine in NETFLOW mode monitoring a router/switch with 1Gbps load. [ See Setup Trisul for NETFLOW mode ]

Hardware System Requirements
Bare Metal 4 Core 3Ghz Intel i3/i5/i7/or Xeon class, 8GB RAM, 2×1Gb LAN. SATA storage
Virtual Machine 6 Core 3Ghz Intel i3/i5/i7/or Xeon class, 8GB RAM, 2×1Gb LAN. SATA storage

Virtual Machine is preferred in Netflow mode for enterprise class load.

2.2.3 Operating system

Trisul is available on the following operating systems. Go to the Download Center to get access to the latest packages

Ubuntu 18.04 LTS 64-bits
Ubuntu 16.04 LTS 64-bits
CentOS 7.x 64-bits
Docker image on any host O/S

If you have a distributed system, Trisul Probes and Trisul Hubs can be installed on different O/S.

2.2.4 Scaling

The load profile of the Probe and Hub components.

Node type Description Load profile Scaling tip
Trisul Hub Database node Very high disk write IOPS, high read IOPS when queried, sequential write pattern, high network I/O to probe nodes Add RAM 4GB per probe, 2 3Ghz Cores per probe
Trisul Probe PCAP storage and streaming analytics Very high CPU bound, high memory usage, diversity of traffic, TCP Reassembly features. For PCAP storage high sequential Disk I/O need RAID-0 array for > 1Gbps disk. High network I/O when flushing to Hub node Add more CPU cores, bigger cache, faster memory, 10G NIC or accelerators
If you are placing Trisul Hub and Probe on the same box, then simply add up the requirements.

Trisul Hub sizing

The Trisul hub is a data storage and query node with a high bandwidth and low latency I/O to the Trisul Probes.

Mode scaling metric additional resource needed
Hub For every medium volume probe + every 5 concurrent users 1 3Ghz Core + 2GB DDR4

Disk sizing is a key concern of the hub. The way Trisul-Hub works is data from each probe is stored in a separate layer. Since Trisul is used a lot in security applications no data is summarized or rolled up. To get an idea of how much data is being added every day, you can let Trisul run for a while and then check the following

Login as Admin → Context (default) → Admin Tasks → DB Status

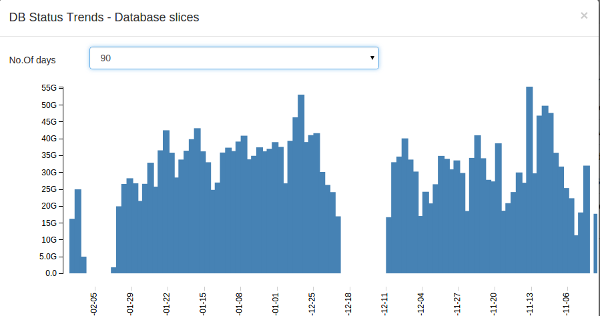

You can get the database growth per day by looking at the “Database slices” table. Click on the icon to bring up a trend of database growth. This can help you size the system into the future.

Probe sizing : Packet capture

Some guidelines in table below for sizing the Trisul Probe node.

Mode scaling metric additional resource needed
Raw Packets For every 200-400Mbps with TCP Reassembly features 1 3Ghz Core + 4GB DDR4
Raw Packets For every 200-400Mbps without TCP Reassembly features 0.5 3Ghz Core + 1GB DDR4
Typical Configuration – Packet Capture

A typical 500-700Mbps full blown SMB 500 IP license can run on the following hardware. Conservative numbers

  • Intel Core i7 with 8 Cores , 16GB RAM
  • add 4xSATA in RAID-0 for PCAP storage

For more diverse networks say 8Gbps ; add more memory and Cores

  • 2X Intel 3.2Ghz Xeon with 24 Cores and 128GB
  • for PCAP you need larger RAID-0 – with 200Mbps/spindle as a raw rule of thumb

Scaling Netflow mode

The relevant scaling metric is Netflow volume. The mapping typically is

  • Enterprise networks : Netflow traffic is 0.5-1% of total. So 1Gbps = 500Kbps-1Mbps
  • Service provider networks : Netflow traffic is 1-3% of total. So 1Gbps = 10-30 Mbps. ISP networks we see are dramatically more diverse in terms of traffic profile than enterprise netflow. This results in more number of endpoints and unique flows , this translates to more memory and slightly more CPU resources
Mode scaling metric additional resource needed
Enterprise Netflow for every 10Mbps NETFLOW traffic + 1 3Ghz Core + 4GB RAM
ISP Netflow for every 10Mbps NETFLOW traffic +1 2 3Ghz Core + 8GB RAM
Typical Configuration – Netflow mode

A typical 800-1Gbps Enterprise Netflow with unlimited number of router interfaces will run on the following hardware. Conservative

  • Intel Xeon/Core 3Ghz 8 Cores , 8GB RAM

While these are typical numbers, every network is different. You can install Trisul-Probe then observe the netflow volume using the Netflow Sources dashboard.

Click Dashboards > Show All > Netflow Sources

The following charts are displayed :

chart shown meaning remarks
Router Interfaces Bandwidth seen on top router interfaces
Flow Records Netflow records per second
Flow Sources Bandwidth per netflow exporter (router)
Netflow data volume Total Netflow bandwidth Use the max observed value from this chart for sizing
