12.3. Packet capture settings

A single instance of Trisul can listen on one or more network interfaces. This page describes how you can add or edit packet capture parameters for any profile.

12.3.1 View list of capture profiles

Login as admin and Select Context : default > profile0 → Capture Adapters

By default, only eth0 is enabled. There are some other disabled entries for debugging purposes. If you want to listen on, say eth1 you can create a new profile and enable that one.

12.3.2 Create a new capture profile

Say you want to create a new network adapter for profile0 in context0.

Select Context : default > profile0 → Capture Adapters
Click Create New Profile

A form with the following fields are displayed

Field Description
Name A unique name for this profile
Description A short description of the profile
Interface The linux network interface name – such as eth0, eth1, wlan0
BPF Filter A BPF (libpcap/tcpdump) filter expression (see notes below on how to generate this for rxring mode – the default)
Add Ethernet FCS Add 4 byte FCS to packet length. Use to option to reconcile with SNMP based counters.
Force Netflow Mode Force this adapter into Netflow Mode – use this option if you want to use a mix of Netflow and Packet capture on a per-adapter basis.
Enable ERSPAN Decapsulate all ERSPAN packets on this interface. If this option is disabled, ERSPAN is counted as a single IP+GRE tunnel.

Provider specific options

Trisul can capture packets in two “four modes”, Linux RX Ring , Libpcap , PF Ring ,AF Packet_,_Napatech . You dont control the run mode here, but at the command line or by changing the application settings. The capture profiles work for all run modes, with one exception.

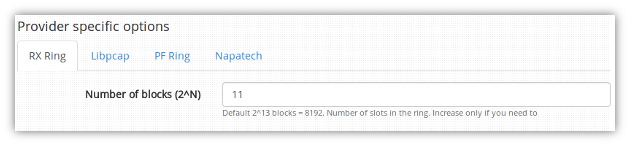

RX Ring

Number of blocks (2^N)
Number of slots in the ring. Increase only if you need to

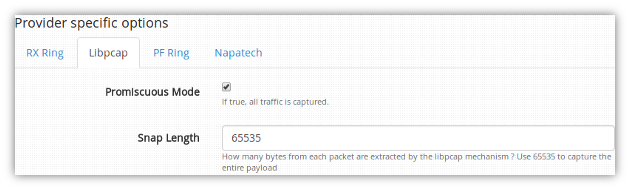

Libpcap

Promiscuous Mode
Usually set to true
Snap length
How many bytes of each packet to capture

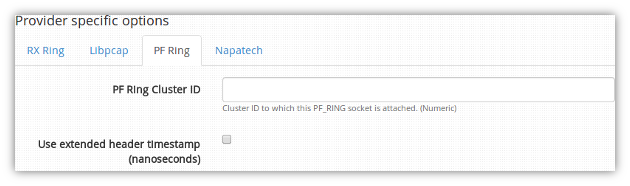

PF Ring

PF Ring Cluster ID
Cluster ID to which this PF_RING socket is attached. (Numeric)

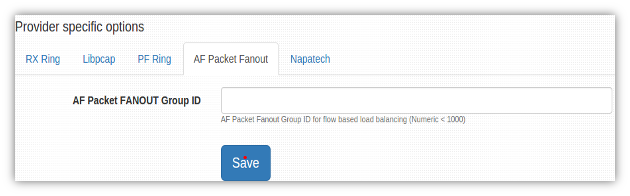

AF Packet

AF Packet FANOUT Group ID
AF Packet Fanout Group ID for flow based load balancing (Numeric < 1000)

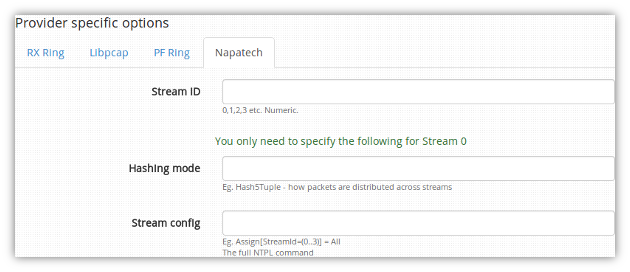

Napatech

Stream ID
Numeric number
Hashing mode
how packets are distributed across streams
Stream config
Full NTPL command.

12.3.3 Specifying a BPF Filter for AFPACKET and RXRING

You need to enter BPF filter slightly differently for RX_RING adapters.

Filter for Libpcap

Just directly enter a tcpdump compatible expression, such as not host 192.168.1.22

Filter for RX Ring

You need to enter the tcpdump bytecode instead of just the expression. To do so, open a linux command line, then use tcpdump -ddd <expression> and paste the output into the BPF Filter box. Here is an example.



[root@localhost trunk]$ sudo tcpdump -i eth0 -ddd not host 192.168.1.22
14
40 0 0 12
21 0 4 2048
32 0 0 26
21 8 0 3232235798
32 0 0 30
21 6 7 3232235798
21 1 0 2054
21 0 5 32821
32 0 0 28
21 2 0 3232235798
32 0 0 38
21 0 1 3232235798
6 0 0 0
6 0 0 65535

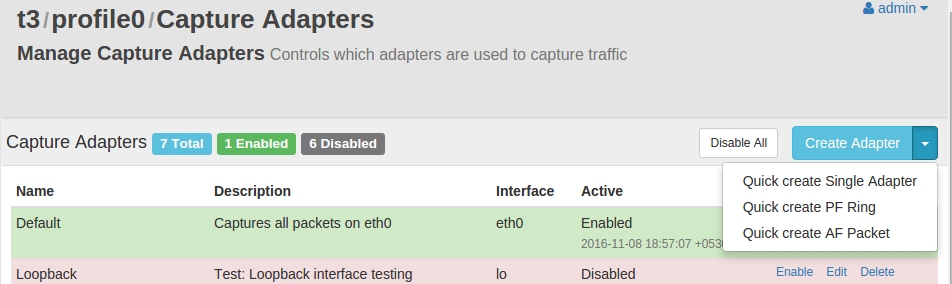

12.3.4 Express adapter creation wizard

Click on “Create Adapter” on the top right to quickly create capture profiles for flow based load balancing.

Quick create Single Adapter

Select Quick create single Adapter to create a single adapter using an interface name

Adapter name Enter the network adapter name (eg eth0)

Quick create PF Ring

Select Quick create RF Ring to create a PF Ring capture profile with multiple streams for flow based load balancing

Adapter name Enter the network adapter name (eg eth0)
Number of streams Number of flow balanced streams (eg 2, 4, etc
Cluster ID PF Ring Cluster ID you wish to assign to the streams (eg 999)

Quick create AF Packet

Select Quick create AF Packet to create AF Packet FANOUT based streams for flow based load balancing.

Adapter name Enter the network adapter name (eg eth0)
Number of streams Number of AF FANOUT streams for flow based load balancing (eg, 2,4,etc)
Fanout Group ID AF Packet Fanout Group ID for flow based load balancing (Example 999)

12.3.5 Enable or Disable the profile

  1. Click Enable or Disable in the Profile list
To disable all adapters, click on the “Disable All” button

12.3.6 Edit the profile

  1. Click Edit in the Profile list
  2. Edit the fields as shown in “Add..”

12.3.7 Delete the profile

  1. Click Delete in the profile list.
