Object Engine

The Trisul metrics engine.

You call methods on this object to add metrics, objects, flows, or other types of information. This is the most important object you will be working with.

Functions

A summary of the functions available in this object.

  • F – functions that can be called from Frontend scripts
  • B – functions that can be called from Backend scripts

If you call functions that are not available you will get the following error


ERR_NOTAVAIL: add_flow_counter() is not available for backend scripts
Name Availability Description
update_counter F B Updates a meter for a key with a particular value
update_counter_bytes F Updates a meter for a key but with a value of wire_length in the packet
update_counter_raw F B Update counter raw is a variant of update_counter.
update_key_info F B Set a user friendly label or a description for a key
add_alert F B Add an alert
add_alert_full F B Same as add alert with with a priority and classification. Used for IDS alert types
add_alert_tca F B For alerts based on metric values and threshold crossing events
add_resource F B Add a new resource with metadata and contents to Trisul
timestamp F B The latest timestamp seen by the engine
add_flow_counter F Add a flow counter
reset_flow_counter F Removes all flow counters, then does an add_flow_counter
tag_flow F B Tag a flow with a label. Y
instanceid F B Engine Instance identifier
probeid F B Trisul probe id of the engine
update_flow F Update a flow based metric
new_flow_record F Inform framework about a new flow record
set_flow_duration F Set the duration of the flow in seconds
disable_reassembly F Stop TCP reassembly of this flow
post_message_frontend F B Post a message to other LUA plugins attached to the packet (frontend) pipeline
post_message_backend F B Post a message to other LUA plugins in the metrics (backend) pipeline

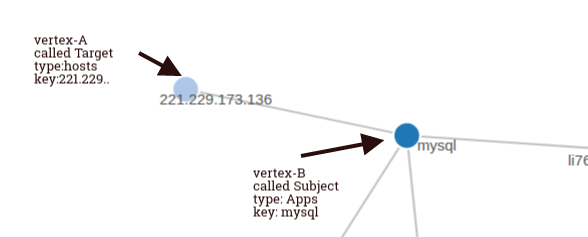

add_edge F B Add a single edge to the Trisul Streaming Graph Analytics pipeline
add_flow_edges F B Automatically add edges from a network flow to a given vertex.
set_key_attribute F B Set an arbitrary {attribute-name,value} pair for any key
add_flow_attribute F B Add an {attribute-name,value} pair for any flow for other Lua script to pick up.

Function update_counter

Adds a single metric to the Trisul platform.

Purpose

Update a counter with a value. Recall that the heirarchy in Trisul is

  • Counter Group example Applications
    • Key example pop3
      • Meter example meter id = 5 Active Connections

Also see

Use update_counter_raw if

  1. you are updating GAUGE or AVERAGE meter data types
  2. you are updating more than 8 metrics for the same key

Parameters

counter guid guid string the counter group you want to update
key string the unique key within the counter group
meter number the metric id within the counter group
value number the metric value

Return value

None

Usage


..

-- update the Hosts counter group identified by the GUID {4CD..}
--        the Host identified by 182.28.22.123
--        the Meter 1 (received bytes)
--           with the value 288278
--
engine:update_counter( "{4CD742B1-C1CA-4708-BE78-0FCA2EB01A87}", "182.28.22.123", 1, 288378)
..

Function update_counter_bytes

FRONTEND ONLY

Adds a single metric to the Trisul framework. Same as update_counter but where the metric value is the packet wire length.

Purpose

When used with simplecounter and other front end scripts – this method adds a metric with the wire length of the packet context in which it is called.

Parameters

counter guid guid string the counter group you want to update
key string the unique key within the counter group
meter number the metric id within the counter group

Return value

None

Usage

This method is only available on frontend scripts.


Function update_counter_raw

A variation of update_counter

Purpose

This does exactly the same thing as update_counter with the following difference.

  1. this version has a slightly lower performance
  2. use this method if you want to update a large number of keys for a single counter group . More than 8 keys
  3. you are updating GAUGE or AVERAGE meter data types

Parameters

counter guid guid string the counter group you want to update
key string the unique key within the counter group
meter number the metric id within the counter group
value number the value of the meter

Return value

None

Usage



--
-- we are updating 6 keys for a single counter group
-- for this kind of updating use the 'raw' version
--
engine:update_counter_raw("{D2AAD7C6-...}", "user_1",  1, 100)
engine:update_counter_raw("{D2AAD7C6-...}", "user_11", 1, 10)
engine:update_counter_raw("{D2AAD7C6-...}", "user_2",  1, 200)
engine:update_counter_raw("{D2AAD7C6-...}", "user_33", 1, 3200)
engine:update_counter_raw("{D2AAD7C6-...}", "user_34", 1, 300)
engine:update_counter_raw("{D2AAD7C6-...}", "user_44", 1, 23200)

Function update_key_info

Set a user friendly label for a key.

Purpose

Set a user friendly label or a description for a particular key. For example : to assign a hostname to an IP address

Parameters

counter group id guid string the counter group id of the counter
key string the key
label string the human friendly label attached to the key
description (optional) string more information

Return value

None

Usage



..
--
-- to assign a label "Router1_10G_1" to the MAC address "0A:11:21.BA:00:02"
-- the GUID "{4B0.."  represents the MAC Counter Group
--
engine:update_key_info( "{4B09BD22-3B99-40FC-8215-94A430EA0A35}", "0A:11:21:BA:00:02", "Router1_10G_1")
..


Function add_alert

Add an alert to the Trisul framework.

Purpose

Lets you add a simple alert to the Trisul pipeline. This simple version only contains a priority, alert-type, and description. Also see add_alert_full and add_alert_tca for more specific variants.

Parameters

alert guid guid string Identifies the type of alert. See GUIDs
flowkey string or nil the flowid string of the flow which caused the alert. nil if alert not related to a particular flow
alertkey string the type of alert within the group. Think of this as a Signature ID
priority number the alert priority. typically 1 = high, 2 = medium, 3 = low. But you can use your priorities if you are using your own alert groups
message string a dispatch message

Return value

None

Usage

The following example adds a Priority 1 alert to the general purpose User Alerts group.



engine:add_alert("{B5F1DECB-51D5-4395-B71B-6FA730B772D9}", -- GUID for 'User Alerts' group
                 resource:flow():id(),                     -- flow ID
                 "RAMNIT-DETECTED",                        -- alert key , think of this as a SigID
                 1,                                        -- priority
                 "A potential EK was detected message ="   -- free form text alert
                 )


Function add_alert_full

Add an alert to the Trisul framework with all bells and whistles.

Purpose

Same as add_alert but with classification and priority fields. To make it compatible with alerts from IDS systems like Snort and Suricata

Parameters

alert guid guid string Identifies the type of alert. See GUIDs
flowkey string or nil the flowid string of the flow which caused the alert. nil if alert not related to a particular flow
alertkey string the type of alert within the group. Think of this as a Signature ID
classification string Optional: a type of alert. This is for compatibility with popular IDS systems like Snort and Suricata
priority number the alert priority. typically 1 = high, 2 = medium, 3 = low. But you can use your priorities if you are using your own
message string a dispatch message
status string (optional) a status or impact field. Example : CLEAR, ALARM, FIRE, BLOCK etc

Return value

None

Usage


Function add_alert_tca

A special type of alert called Threshold Crossing Alert (TCA) based on metrics.

Purpose

Same as add_alert family but designed for metrics based alerting.

Parameters

alert guid guid string Identifies the type of alert. See GUIDs
tca_id number a number that uniquely identifies a type of threshold you’ve defined elsewhere. Example : a TCA , Threshold Band, or Flow Tracker alert in Trisul.
status string a string FIRED crossed threshold event or CLEAR when condition is clear and metric back in limits
message string a dispatch message

Return value

None

Usage


Function add_resource

Add a new resource.

Purpose

Resources are meta data which you can log and search on. You can create your own resource group or add to existing resource groups like “DNS Records”, “HTTP URLs”, etc. Think of resources as logs and resource groups as log types

Parameters

resource_id a GUID Resource group ID. See GUIDs
flowkey a string in FlowID format The flow containing this resource. You can get the flow ID from a packet.
uri a string The metadata that identifies the resource. This can be thought of a summary of the full log entry
contents (optional) a string The actual resource (less than 32K). This of this as the complete log line

Return value

None

Usage



-- add a custom SHA256 hash resource
--
engine:add_resource('{9781db2c-f78a-4f7f-a7e8-2b1a9a7be71a}',  -- represents FileHash resource in Trisul
                    flowkey:id(),                              -- flow ID
                    "SHA256:"..hex_sha256,                     -- resource key (log summary)
                    full_filename)                             -- full resource  (full log)




Function timestamp

The latest timestamp in seconds since Epoch format (timeval.tv_sec) seen by the engine.

Purpose

If you want to find out the latest timestamps seen by the engine. Remember that you may not be able to simply use os.date) because Trisul also works on PCAP files that may have other timestamps.

Parameters

None.

Return value

Number Representing number of seconds since 1-1-1970, a unix timestamp value (tv_sec)
  1. For frontend scripts that work with packets, this represents the timestamp of the last packet seen.
  2. For backend scripts, this returns the last stream interval that was processed to completion.

Usage


Function add_flow_counter

FRONTEND ONLY

Add an automatic flow based counter.

Purpose

A Flow Counter works in the following way :

  1. you attach a counter to a flow
  2. all packets in that flow from that point onwards automatically get that counter with the metric equal to the packet length

Parameters

flowkey string identifies the flow that you want to attach a counter to
counter group id guid string the counter group id of the counter you want to attach to this flow
key string the key within the counter group
metric number the metric for the counter group
direction number the direction you want to count.
0 = Both 1 = OUT (in Direction of SYN), 2 = IN

Return value

None

Usage

The method is only available for Frontend scripts. If you call this method from a backend script you will get an error.

If you detect a particular flow to be carrying YouTube video you can attach a counter “you-tube-traffic” metric. From that point onwards each packet on that flow will automatically update the ‘youtube-traffic’ counter with the packet length.

Note on the Direction parameter

Use Direction=0 to update a Total traffic counter and Directions 1,2 to update IN/OUT separately. In the snippet below you’ve created your own counter group with GUID {55F..} with three meters 0=Total,1=Xmit,2=Recv. You can see how to update the Totals counter Direction=0 and In/Out counters



-- Direction 0 : update both OUT and IN direction packets to the same counter

-- to update a TOTAL BYTES counter
engine:add_flow_counter( flowkey:id(),
                         "{55F98CC1-646E-4DE6-AD79-6B896211F177}",  -- a counter guid
                         'my-video-traffic',
                         0,  -- Total bytes
                         0)  -- Both directions update the Total bytes counter


-- for XMIT
engine:add_flow_counter( flowkey:id(),
                         "{55F98CC1-646E-4DE6-AD79-6B896211F177}",  -- a counter guid
                         external_host,
                         1,   -- Transmit meter
                         1)   -- Only OUT direction update the Trasmit meter
-- for RECV
engine:add_flow_counter( flowkey:id(),
                         "{55F98CC1-646E-4DE6-AD79-6B896211F177}",  -- a counter guid
                         external_host,
                         2,   -- Recv meter
                         2)   -- Only IN direction update the receive meter



Function reset_flow_counter

FRONTEND ONLY

Removes a flow based counter.

Purpose

Remove a previous flow based counter added by add_flow_counter

Parameters

flowkey string identifies the flow that you want to attach a counter to
counter group id guid string the counter group id of the counter you want to attach to this flow

Return value

None

Usage

The method is only available for Frontend scripts. If you call this method from a backend script you will get an error.


Function tag_flow

Tag a flow with a string.

Purpose

Add a text label to a IP flow. You can then search for flows using this string.

Parameters

flowkey string identifies the flow that you want to attach a counter to. Usually you get this from flow:id
tag string a short text label that is attached to the flow. You can attach multiple tags to a flow but the total length of all tags must be less than 64 bytes. If you add tags >= 64 bytes the extra tags are discarded.

Return value

None

Usage


Function instanceid

A string representing the instance of the engine

Purpose

There may be multiple engine contexts in Trisul. This string identifies each one. You can use this to construct unique filenames etc.

Parameters

None.

Return value

String Representing the instance of the engine object you are working with. This string is random string like “77BAB82” for Frontend scripts. For backend scripts, this string is the instance number such as “0”, “1”, “2” etc.

Usage

A common use of instanceid is to construct filenames for log files. Another use is when you have scheduled scripts and you only want to run them once. In that case, you only run your code when engine:instanceid()=="0" See engine_monitor for more.


Function probeid

The probe id.

Purpose

Use this to retrieve the probeid – eg probe0 that the engine object belongs to.

Parameters

None.

Return value

String The probe id such as probe0 that identifies the domain probe id of the engine

Usage


Function update_flow

FRONTEND ONLY

Add a flow metric.

Purpose

Update a flow based metric. The key used in a SessKey format.

Parameters

key string a string representing a flow in SessKey format
meter number the metric id
value number update with this value

Return value

None

Usage


Function new_flow_record

Use this method only when you are writing an Input Filter plugin importing feeds with “Netflow like” flow records.

Purpose

Tell the Trisul framework we have new flow record with X bytes and Y packets. The reason you need to do this is because some plugins ; such as Badfellas work with flow records for efficiency reasons. This method does not impact metrics in any way, but exists only to inform some plugins of a new flow.

Parameters

key string a string representing a flow in SessKey format
bytes_az number bytes in A > Z direction
bytes_za number bytes in Z > A direction
packets_az number packets in A > Z direction
packets_za number packets in Z > A direction

Return value

None

Usage


Function set_flow_duration

FRONTEND ONLY

Set length in seconds of a flow.

Purpose

Use this along with update_flow to handle Netflow like input data. This method sets the length of each flow. Use this if the duration of the flow is available in your input records.

Parameters

key string a string representing a flow in SessKey format
value number duration of the flow in seconds

Return value

None

Usage


Function disable_reassembly

FRONTEND ONLY

Stop reassembly and reconstruction of this flow.

Purpose

This method is useful in various contexts like file extraction and reassembly

The main use of this method is when you need to see the beginning bytes of a TCP flow to determine whether you are interested in further reassembly. Turning off reassembly of TCP streams you are not interested in can save significant CPU and memory.

Parameters

key string a string representing a flow in SessKey format

Return value

None

Usage

disable_reassembly is only available for frontend scripts that work with packets and flows.


Function post_message_frontend

Post a message to the frontend (packet) pipeline

Purpose

Use this method to communicate with other LUA plugins that are plugged into the packet pipeline stages.

You can use trisulctl_probe testbench guid to generate a msg id.

Parameters

message_id (optional) a GUID a message ID – message sent only to those LUA plugins subscribed to this message id.
message a string a message. the targets would know how to handle

Return value

None

Usage



-- sent to all plugins which have an onmessage(..) handler
--
engine:post_message_frontend("192.168.2.1 port 299 needs fileextraction")


-- sent to only those plugins who have subscribed to
-- message if {F8D5570E-00A7-41FD-C30E-298C55D8EC4D}
--
engine:post_message_frontend("{F8D5570E-00A7-41FD-C30E-298C55D8EC4D}",
                              "192.168.2.1 port 299 needs fileextraction")

..



Function post_message_backend

Post a message to the backend (streaming metrics) pipeline

Purpose

Use this method to communicate with other LUA plugins that are plugged into the backend pipeline

You can use trisulctl_probe testbench guid to generate a msg id.

Parameters

message_id (optional) a GUID a message ID – message sent only to those LUA plugins subscribed to this message id.
message a string a message. the targets would know how to handle

Return value

None

Usage



-- sent to all backend plugins which have an onmessage(..) handler
--
engine:post_message_backend("192.168.2.1 port 299 label all flows as suspicious")


-- sent to only those plugins who have subscribed to
-- message id {F8D5570E-00A7-41FD-C30E-298C55D8EC4D}
--
engine:post_message_backend("{F8D5570E-00A7-41FD-C30E-298C55D8EC4D}",
                              "192.168.2.1 port 299 label all flows as suspicious")

..



Function add_edge

Add a new uni-directional edge to the edge stream. This is part of the new Trisul Streaming Graph Analytics feature set.

Purpose

In Graph Analytics lingo, an edge is two vertices joined with a connection. The add_edge method allows to you push a simple Edge to the Trisul streaming pipeline.

The above picture explains the following terms

Subject Vertex Type
The type or color of Vertex-A. This is a GUID , typically a counter group or alert type.
Subject Vertex Key
A key identifying the vertex within the group. Example an IP Address within Hosts
Target Vertex Type
The type or color of Vertex-B.
Target Vertex Key
A key identifying the target vertex

Parameters

subject_guid a GUID type of Vertex-A
subject_key string key of Vertex-A
target_guid a GUID type of Vertex-B
target_key string key of Vertex-B

Note on edge direction.

Trisul edges are directional, so if you want to add a bi-directional edge. Call add_edge twice with A and B reversed the second time. See Usage section.

Return value

None

Usage

Here is how you add a bi-directional edge. Say between a PING-ALERT and an Internal IP address



--
engine:add_edge("{F8D5570E-00A7-41FD-C30E-298C55D8EC4D}", "ICMP-PING-ALERT"
                "{98348488-45A7-45FD-450E-45838053800D}", "10.2.28.18" );

-- the other direction
engine:add_edge("{98348488-45A7-45FD-450E-45838053800D}", "10.2.28.18",
                "{F8D5570E-00A7-41FD-C30E-298C55D8EC4D}", "ICMP-PING-ALERT");



..



Function add_flow_edges

Add edges from a given vertex to all vertices of a flow.

Purpose

This function adds the following uni-directional edges from a given vertex

  • Vertex → Source IP
  • Source IP → Vertex
  • Vertex → Dest IP
  • Dest IP → Vertex
  • Port → Vertex
  • Vertex → Port
  • Protocol → Vertex
  • Vertex → Protocol

Parameters

flow_key a string A string representing a flow. This is in FlowID format You typically get this string as inputs to your lua function
target_guid a GUID type of Vertex-B. This can be a counter group id, alert group id, or any other group id
target_key string key of Vertex-B

Return value

None

Usage

Add an ALERT vertex to all the endpoints of the flow that generated it.



--
-- adds edges from the new ICMP-PING-ALERT vertex
--
engine:add_flow_edges("06A:C0.A8.01.02:p-0B94_D1.D8.F9.3A:p-0016",
                      "{F8D5570E-00A7-41FD-C30E-298C55D8EC4D}", "ICMP-PING-ALERT");

..


Function set_key_attribute

Add an arbitrary attribute-name, attribute-value pair to any key.
If the key already has an attribute with the attribute-name then overwrite the old value with the new attribute_value

Purpose

Allows you to attach a name,value to any key. For example

  1. A common use is to assign an Interface Speed (ifSpeed) to a netflow interface.
  2. other uses can be thought of such as “operating-system” to a Host IP, etc

Parameters

counter guid guid string the counter group
key string the unique key within the counter group
attribute_name a string A name for the attribute
attribute_value a string a value

Return value

None

Usage



--
-- to assign a value of 100000 to interface_speed for interface 1ge/0/0
--

set_key_attribute(  "{7CA09636-02D4-45e7-AA00-BE0D49B94E26}", -- netflow interfaces group
                    "1ge/0/0",             -- interface key
                    "interface_speed",     -- attr_name
                    "1000000" )            -- value


Function add_flow_attribute

Adds an attribute-name=attribute-value to a flow.

Purpose

Flow attributes can be attached to any flow. You can then write other scripts that can listen to these attributes using reassembly/onattribute and work on them.

Parameters

flow_key string A string representing a FlowID
attribute_name string type of attribute. Example HTTP-User-Agent
attribute_value string attribute value, Example “Mozilla …”

Return value

None

Usage
