5.3. Key dashboard

The Key Dashboard is a special type of dashboard used to view and drilldown from “Keys”. In Trisul terminology a Key is an item within a counter group. Clicking on any key will take you to the Key Dashboard from there you can pivot to a number of different analysis paths.

A quick recap of the hierarchy and terminology first:

  • Counter Group – A type or entity being measured. For example (Hosts)
    • Key – A specific item being measured within the Counter group. For example (google.com)
      • Meter – A metric within the key. For example ( Number of connections )

For more read Traffic Metering Concepts

How to access the key dashboard

There are two ways to get to the key dashboard

1. By clicking

Click on any item in any page to open the key dashboard for that item

Some examples :

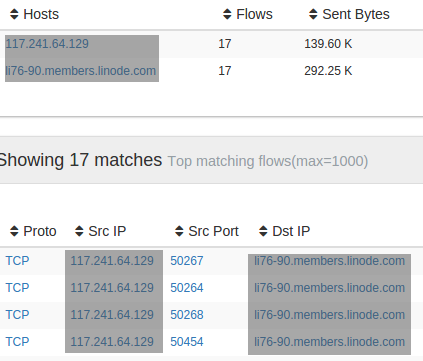

All hosts are linked to their respective key dashboards
Hosts/Ports for these malware alerts are linked

Note that you can also click on PIE and BUBBLE chart items.

2. By searching

Type in a search and click on search results

The search method is very useful if you want to see details of something that is not visible on any of the screens shown by Trisul. For example : You want to search for a host mail.trisul.org but it isnt showing up on any lists for you to click on.

Using the key dashboard

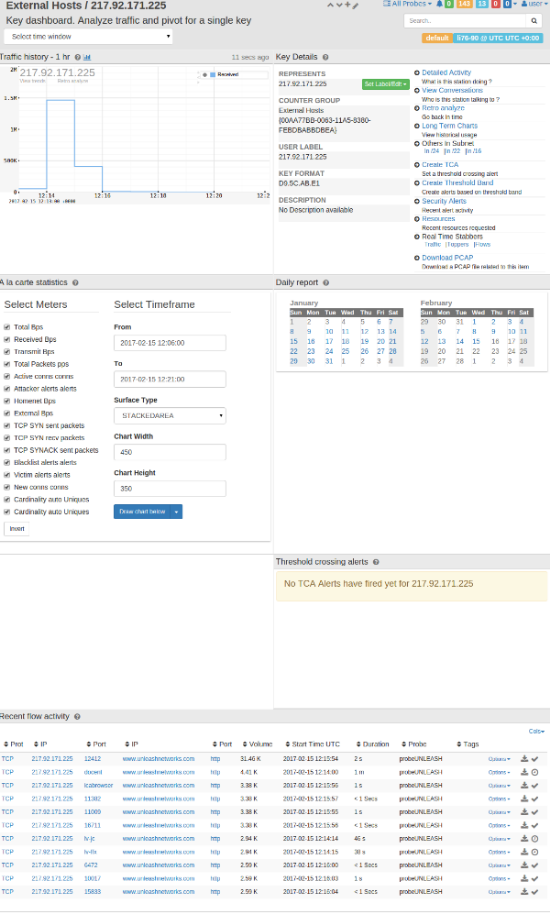

The default key dashboard has the following modules. Here is a brief description of each of these modules. They are mostly self explanatory.

Module Usage
Traffic History Most recent 1hr traffic history. Note you can click on View Trends and Retro Analysis within the chart to expand this time window.
Key Details Various drilldown options pertaining to this key
A la carte statistics Flexible charting tool (quick and easy)
TCA Details Shows recent threshold crossing alerts, if any
Flow Activity Displays recent top flows
Daily Report Click on a calendar day to get a PDF report with detailed usage

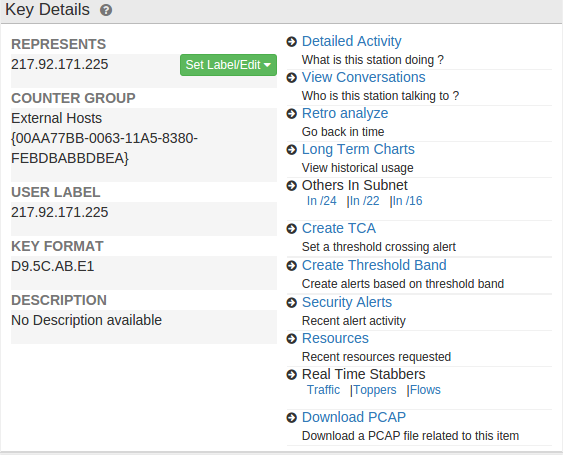

5.3.1 Key Details

Lets pay special attention to the Key Details module. This is the jumping point where you have access to various drilldown tools related to the key.

This module is split into two panels.

  1. Info on left → Contains details about the key including resolved/user assigned labels.
  2. Tools on right → Drilldown tools for further investigation about key

Name Resolution

Assigning a user friendly name such as a hostname to an IP is a common operation.

Resolve the name for this key. Works for all IP addresses and AS Numbers
Edit the User label for this key manually

See the resolve name section for more details.

Drilldown options

Note The contents shown here depend on the type of key being displayed

The most common ones are described below.

Detailed Activity What is this station doing ?
Open up the Investigate IP tool for this key for the last 1 hour.
View Conversations Who is this station talking to ?
Open up a Flow Based Investigation for this IP/Port/or Netflow Router Interface for the past one hour.
Retro analyze Go back in time
Open up a historical reto analysis for this key. The retro forms are all pre-filled with details about this key.
Long Term Charts View historical usage.
Open up the Long term analysis tool
Others In Subnet #In /24 → Find active 24 subnet keys in past traffic
#In /22 → Find active 22 subnet keys in past traffic
#In /16 → Find active 16 subnet keys in past traffic
Create TCA Create a threshold crossing alerts for this key.
See this for more
Create Threshold Band Create and view training data
Security Alerts Recent IDS alert activity
Resources Recent resources requested
Recent URL and DNS resources requested by this key
Real Time Stabbers Open real time monitoring stabbers (5 sec)
You can now watch specific network activity with a 5 second delay. The three options available are
# Traffic → Real time traffic chart for this key
# Toppers → View top keys in the same counter group as this one
# Flows → View live flows related to this key (only for Hosts and Apps)
Download PCAP Download a PCAP file related to this item
